EC1004 FMS Eco Driving Report (Teltonika)

Track and optimize your fleet's fuel efficiency with the Teltonika FMC650 tracker, leveraging real-time data from Eco Driving reports. By analyzing FMS CAN data from Teltonika trackers, you can monitor driver behaviour changes to save on fuel costs and overall maintenance costs of the asset.

  • Improved Fuel Economy: reduce fuel costs by monitoring the total fuel consumed and identify outliers
  • Enhanced Driver Awareness: monitor the driver behaviour changes to reduce fuel and flag gas-guzzling assets
  • Data-Driven Insights: enable fleet managers to make informed decisions based on real-time data, increasing overall operational efficiency
  • Teltonika FMC650 FMS ECO Driving signals - AVL ID 12000+ (How Teltonika FMS Eco Driving accumulators work)

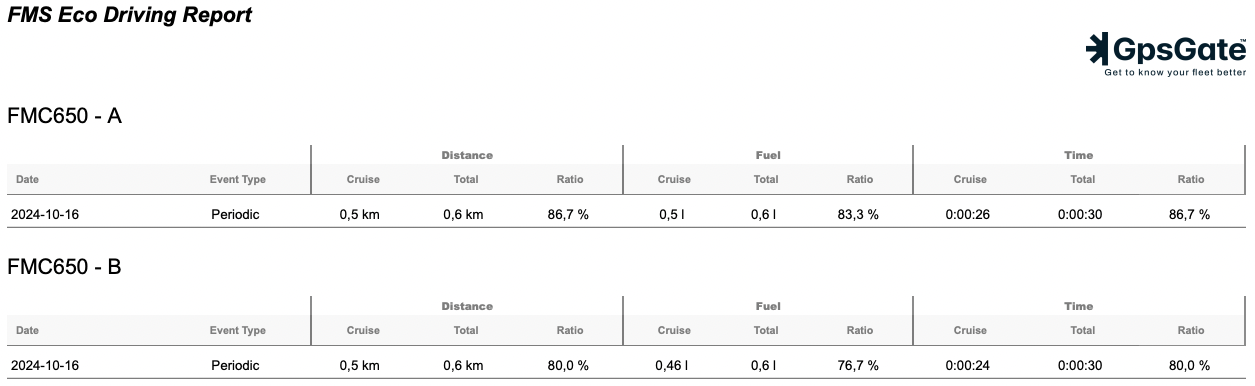

Screenshot 2024-10-28 at 15.32.31.png

This guide details setting up FMS Eco Driving Report usage with the FMC650 tracker. (With Cruise Driving signals as sample)

How to install the report:

1. Edit the Device Mapper for the FMC650

2. Ensure you are using the same variables as presented, or create new variables

3. Import the report template.

4. Activate the report in the application

Device Mapper

This report requires the following inputs to be mapped with the below variables:

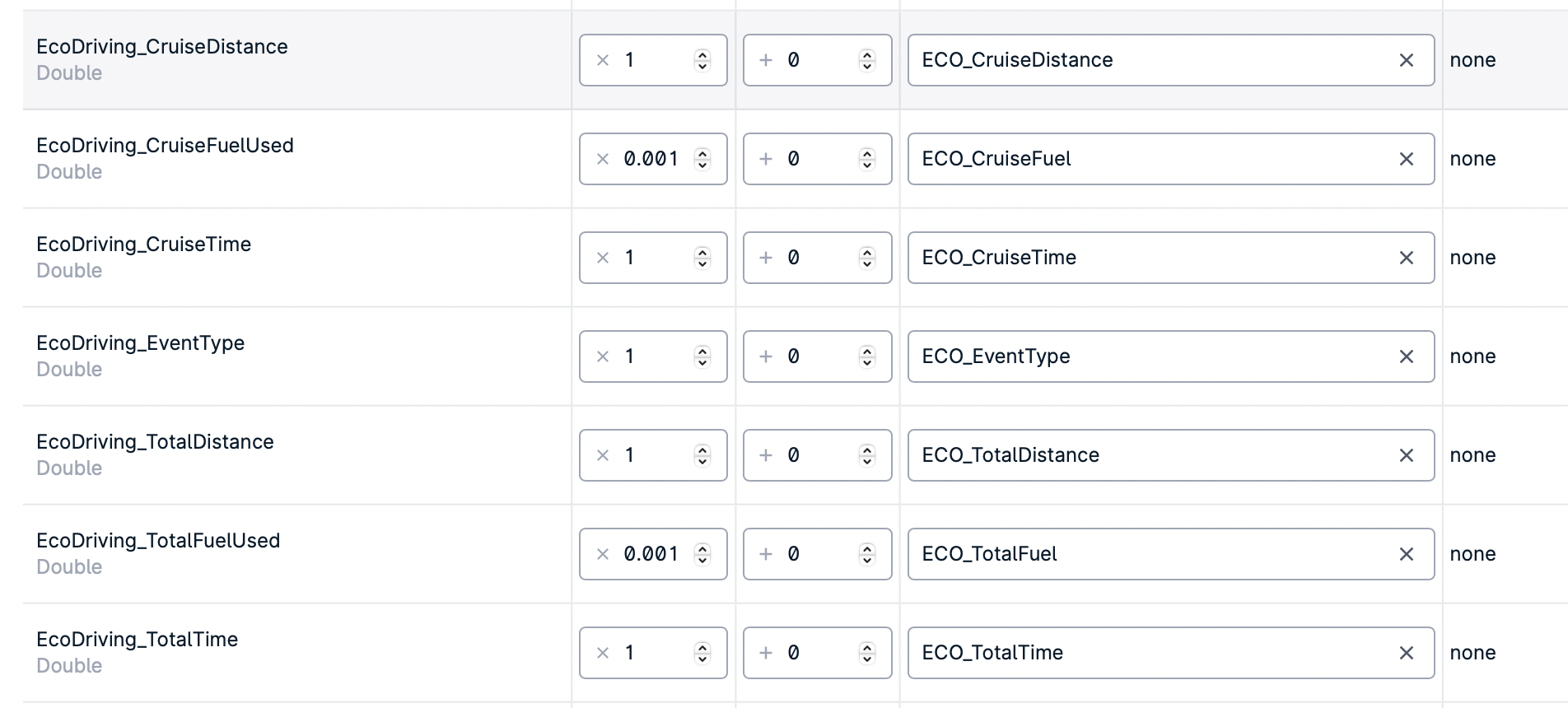

Screenshot 2024-10-28 at 13.20.47.png

Note: If those variables are not in your platform, you can create custom variables by following this guide.

Adding Additional Inputs

You can add more signals from the tracker if needed. To do this, ensure that each new input is mapped in the device mapper with a variable. This data should be associated with the Data Provider: EcoDistance01. For more information, refer to the article: Customize Data Providers

Can't find the needed signals? Feel free to open a support ticket with GpsGate Support.

To update your report:

  1. Edit the report query to include the new Data Provider created under EcoDistance01.
  2. Add a new column to the report and link it to the new variable.

Attachments:

Import the report template located at the bottom of this article. More details on how to import a template can be found in the Import Reports Guide.

Activate the report in the application

The report must be activated in an application before it can be used. Activate the report by following this guide.

If you have any questions or need further assistance with these configurations, please feel free to open a support ticket with GpsGate Support.
