Command panel


The command panel is scalable, user-friendly, and more powerful than ever. Learn how we've optimized it to meet your business demands.

The recent command panel improvements reinforce our commitment to having the best GPS tracking software. It’s all about scalability, customization, and a friendly UI in an extremely powerful package. Read on to learn about the performance improvements, and how the UI provides scalability.


  1. Log in to SiteAdmin.
  2. Go to the Applications tab and click on your application.

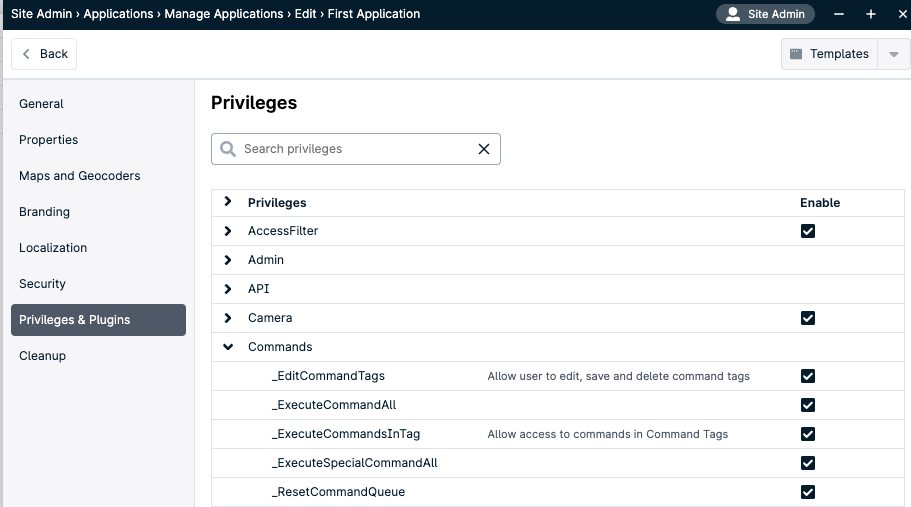

  3. Expand the Privileges and Roles section and set the privileges in the Commands folder.
  4. Scroll to the bottom of the page and click Save.
  5. Log in to your VehicleTracker application.
  6. Open the Command Control Panel under Admin menu

Scalability and user interface

GpsGate Server’s capacity to handle tens of thousands of active devices requires a command panel that is intuitive and effective for large volumes of commands. Here’s how we make that happen:

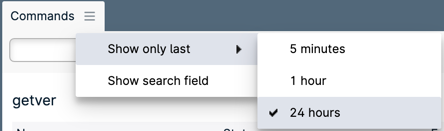

Separate historical and in-progress command activity tabs. Operators can quickly switch views using the toggle in the top right hand corner of the panel.

command panel toggle button

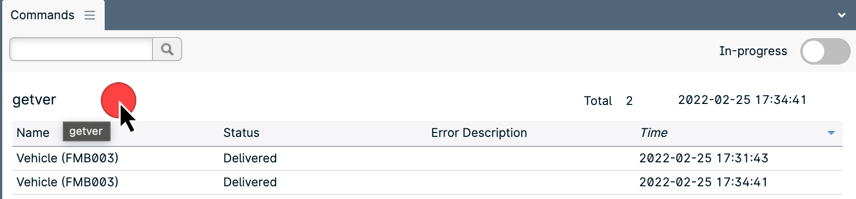

Command history view with summary statistics. The command panel collects all the command activity and groups it by command name. This lets you quickly analyse whether the commands executed without viewing individual results.

command panel historical summary

Detailed historical command view. You can expand the command to see a table with detailed information on a specific historical command result.

command panel history with detail

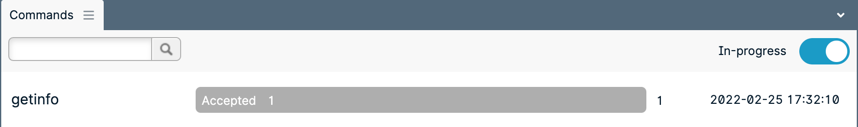

Pending command view with progress stats. A progress bar shows the current status of each command group. You always have clear oversight on what’s happening because the progress bar updates and resizes in real-time.

Detailed pending command view. You can expand the command to see a table with detailed information on a specific pending command. You can even abort the command for any device by using the ‘abort’ button in the table.

command panel in-progress detail view

Focus: performance

The command panel uses our push technology, so information is sent to the UI in real-time by the server. Geek speak: the command progress bars use hardware graphics acceleration when available. Why it matters: the progress bars animate smoothly and are responsive on even the largest servers.

More details

The command panel is included as a base feature in GpsGate Server 5.

For managing the manual execution of large quantities of commands, please see our Device Manager plugin. An upcoming blog will discuss the device manager redesign.
