Localize your variable names

Sometimes, you may want to modify variable names for the following reasons:

  • To find a name that better reflects the input you are receiving.
  • To provide a more accurate translation in your own language.
  • To make the purpose of the signal clearer.

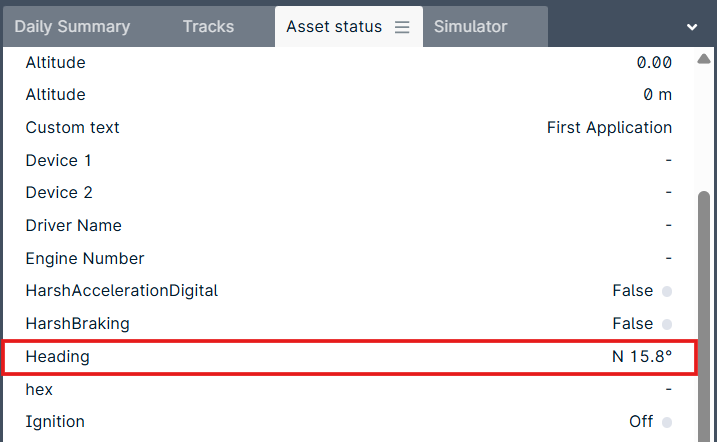

By following this procedure, you can make these changes without altering the device mapper. For example, let's say you want to modify the translation of the variable "Custom Analog 1."

Screenshot 2024-07-18 at 12.07.51.png

To change this name to another one, follow these steps:

1. Go to Admin > Localization

Note: Discover how to enable the localization editor here.

Screenshot 2024-07-18 at 12.10.11.png

2. Press on button  + Language Screenshot 2024-07-18 at 12.10.58.png

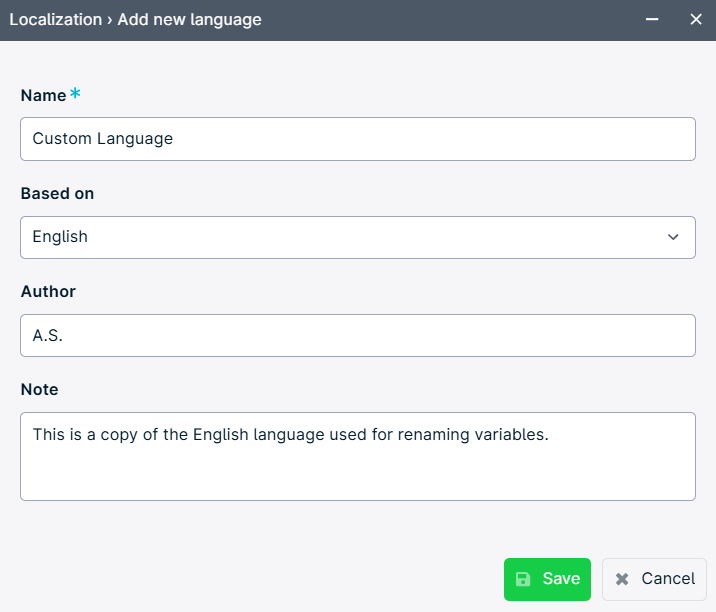

3. Choose a name and select the language you're using in the interface. In this example, we use English. Then save the language.

Screenshot 2024-07-18 at 12.12.44.png

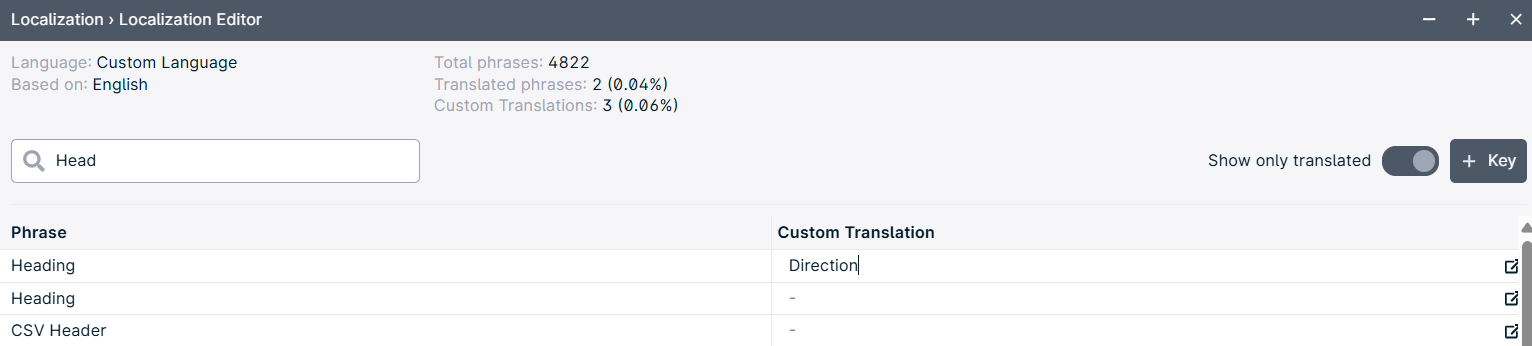

3. Press on the new language created and search for the word of the input you want to change.

Then type the new word and click Save and Reload

Screenshot 2024-07-18 at 12.19.44.png

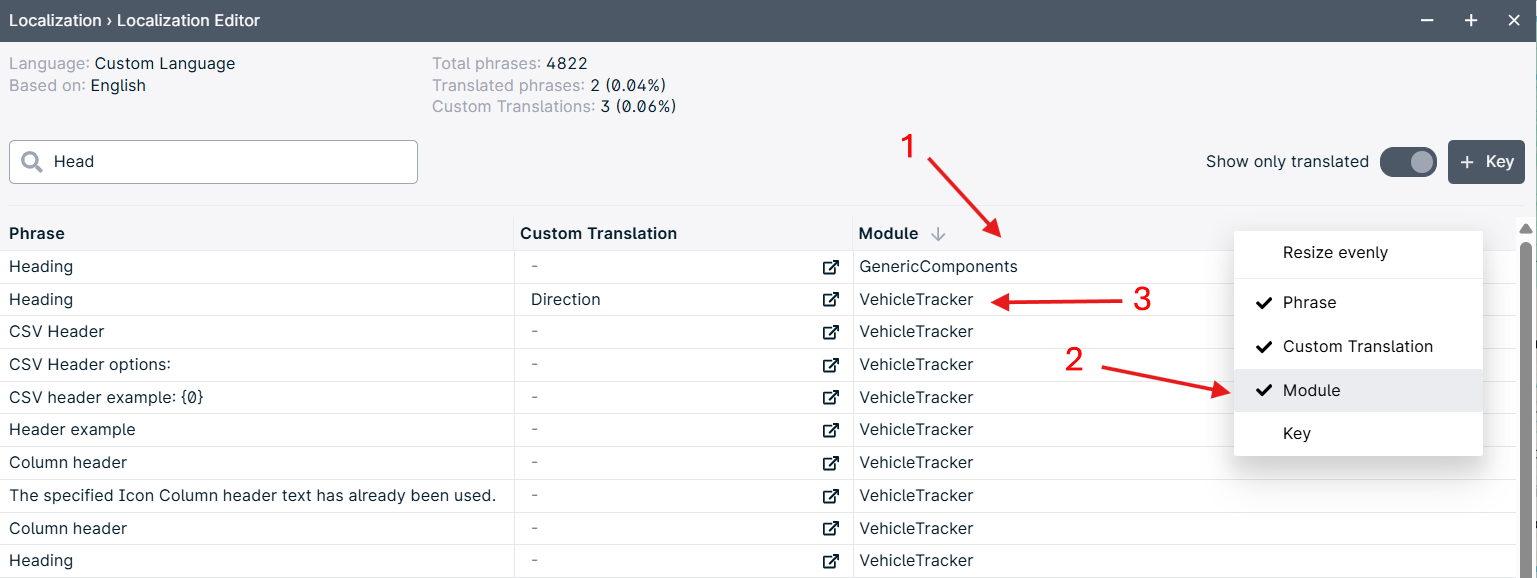

To make sure you add the translations to the Generic Components module:

  • Click right on the header
  • Tick the Module
  • Verify the Module column

Screenshot 2024-07-18 at 12.21.00.png

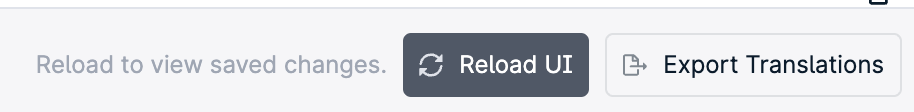

4. Click on the button Reload UI

Screenshot 2024-07-18 at 12.19.55.png

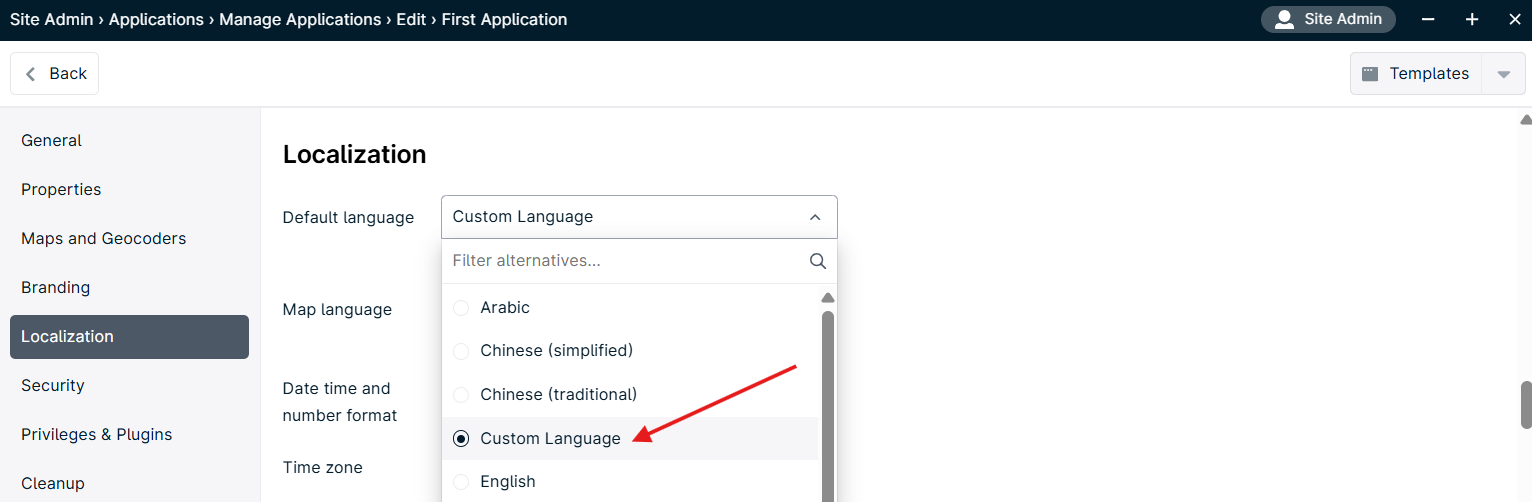

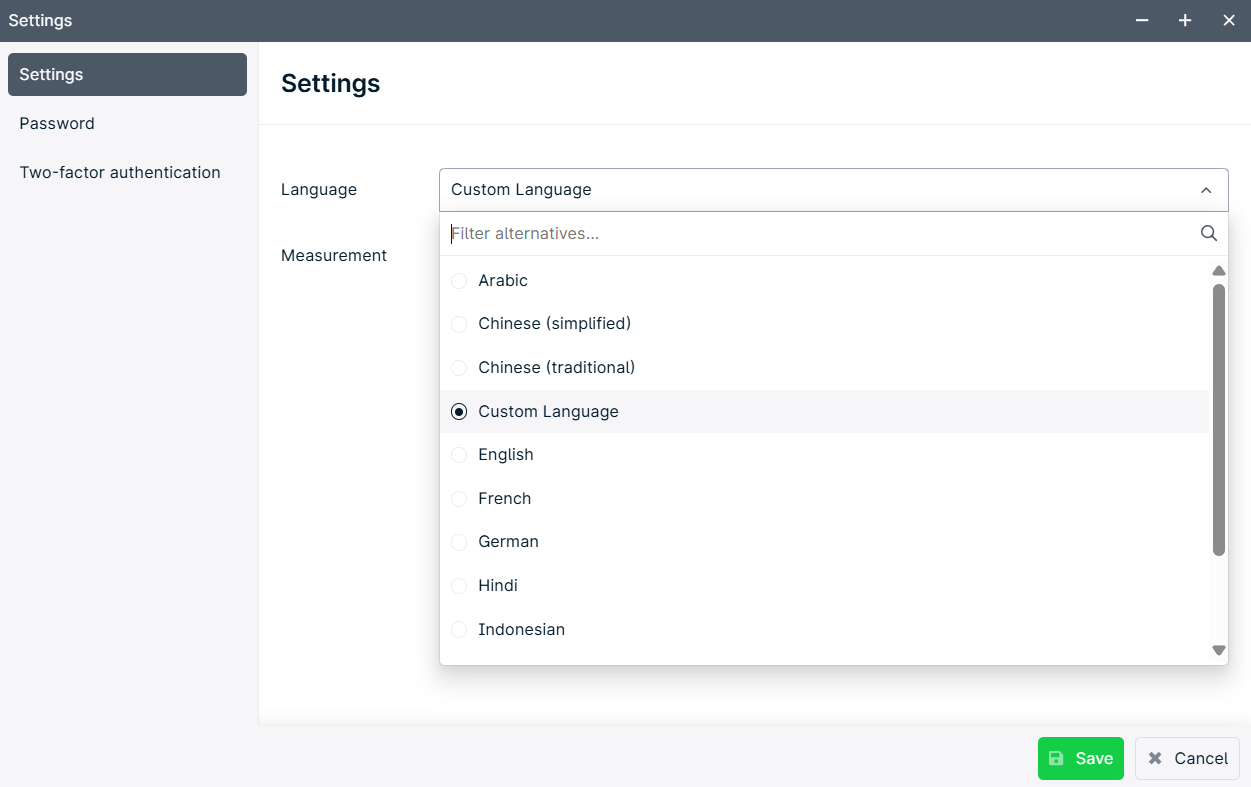

5. Change the application language in the Site Administration > Applications > Manage Applications -> Edit the Localization

Screenshot 2024-07-18 at 12.26.19.png

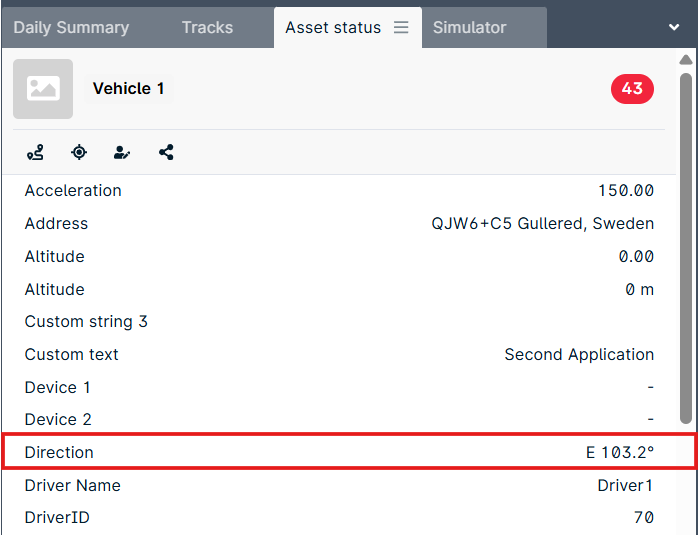

Now your variable name has changed!

Screenshot 2024-07-18 at 12.29.26.png
