Single Sign On installation

The Single Sign On (SSO) with Okta integration consists in these steps:

1. Log in to Site Admin and navigate to the Plugins tab.

2. Click on Get More Plugins > and install the Saml plugin.

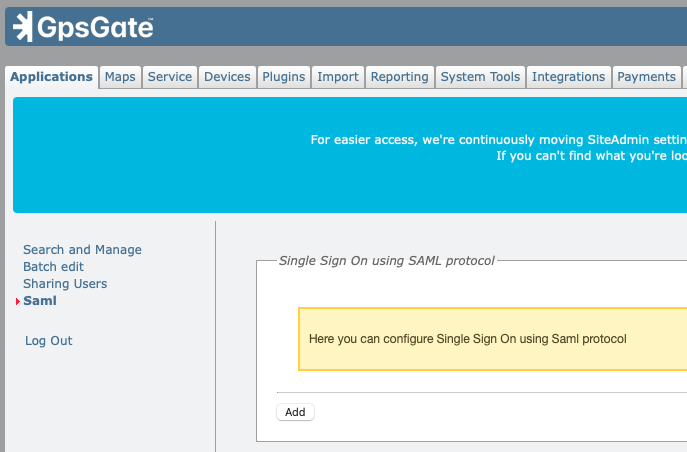

3. Go to Applications > Saml tab.

ADFS configuration

4. Click on the Add button and select an application for single sign-on from the drop-down list.

Once the menu is open, do NOT click the Create button yet. We will return to this point later.

5. Create an ADFS configuration setup.

6. Once obtained, set the SAML Metadata URL for your ADFS server. It should be something like:

https://youradfsserver.com/federationmetadata/2007-06/federationmetadata.xml

In case your federation metadata file does not provide a valid HTTP-Redirect URL, you can override it by inserting a custom URL in the ‘Override HTTP-Redirect URL’ field.

7. Finally, click on the Create button.

GpsGate will download the metadata in the background and pair your GpsGate application with the ADFS server.

Now you have configured the SSO.

When you visit the Single Sign On Url associated with your application, you will be automatically logged in to GpsGate when you are already logged in to ADFS.

OKTA Setup

8. Follow the configure OKTA service guide.

9. Once obtained, paste the Metadata URL obtained in the previous step.

10. Click the Create button.

GpsGate will download the metadata in the background and pair your GpsGate application with the Okta app:

Congratulations! You successfully configured the SSO.

When you visit the Single Sign On URL associated with your application, you will be automatically logged in to GpsGate when you are already logged in to OKTA.
