Login with Active Directory account

The feature Login with Active Directory allows users to automatically login in GpsGate using account from active directory.

IIS requirements

  • Windows Authentication enabled.
  • Anonymous Authentication enabled.


  1. Log in to SiteAdmin.
  2. Go to the Plugins tab.
  3. Under My Plugins tab, make sure all plugins are up to date.


  1. Navigate to Applications > Active Directory.

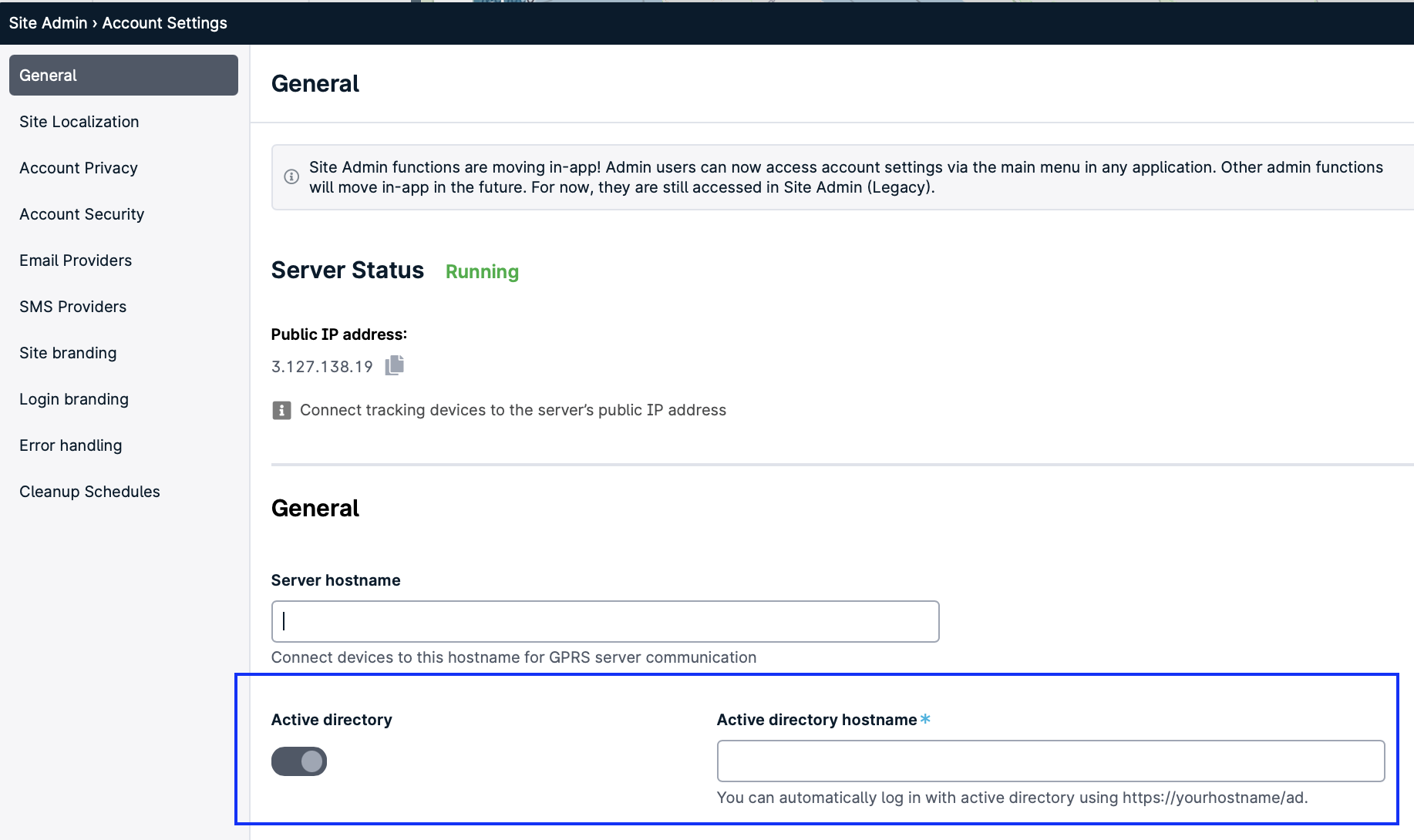

  2. Enable Active Directory Login, setup the domain name (it is case sensitive) and save it.
  3. Make sure that the username from this domain also exists in the GpsGate.

To login follow the link: http://yourgpsgateserver.url/ad

If the automatic login does not work, you will get an error and after pressing OK, you will be redirected to login form. You can also check errors logs under SiteAdmin > System Tools > Logs and get the logs to troubleshoot the problems.
