Android profiles configuration (change the default tracking parameters)

The General Android tracker uses the following General default profile:

  • Tracker time interval: 60 seconds
  • Tracker distance: 400 meters
  • Tracker direction change: 30 degrees
  • Upload throttle: 0 seconds (no throttle)

To change these settings, follow the procedure below:

Make a new profile

To make a new tracking profile for your Android device, follow these steps:

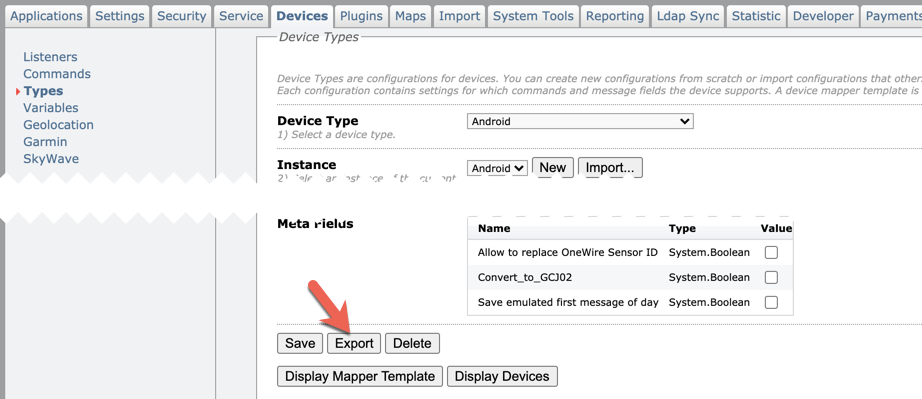

1. Export the Android or Android Wifi Only device types from Site Admin (Legacy) > Devices > Types.


An .xml file will be downloaded.

2. Open the XML file with your favorite text editor. You will see a section in the XML called Profiles.

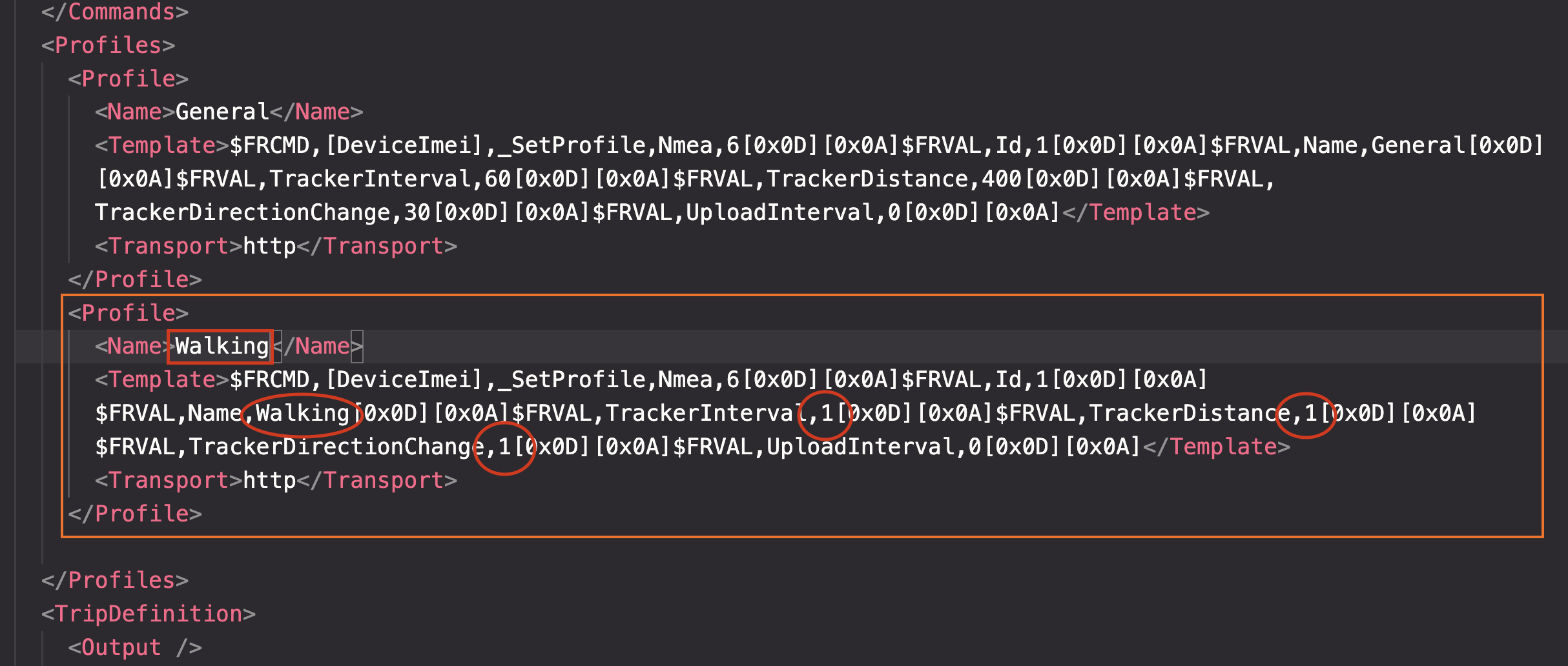

3. Add a new profile, below the General profile. You can copy-paste the General profile and start customizing your new one.

Screenshot 2024-07-09 at 11.37.10.png

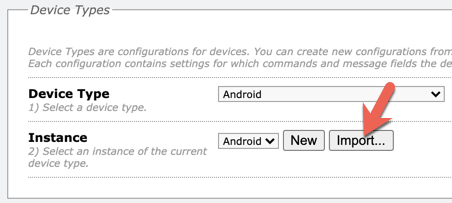

4. Re-import this template and your new Settings Profile will appear in the Edit User window on all devices that use the profile.

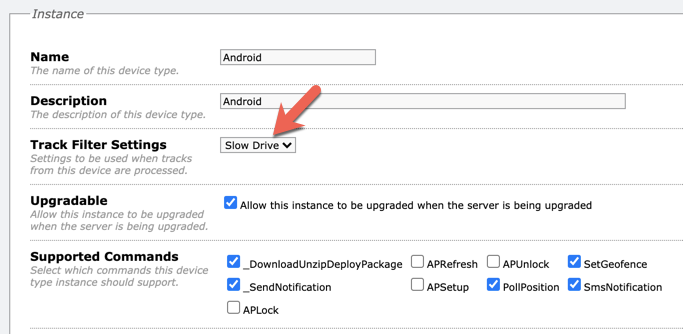

5. If this profile is going to be used for walking, we recommend selecting the Slow Drive filter:


6. Go to the bottom and click on Save.


7. Log in to your application and modify the user/device using Android.

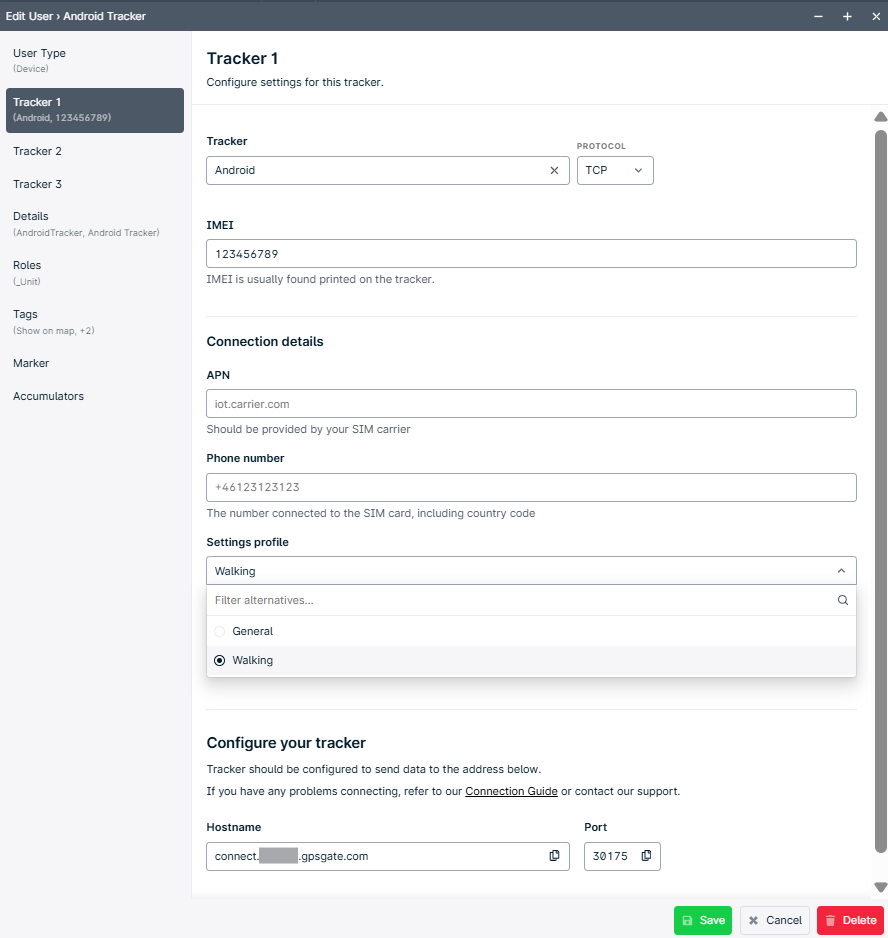

Under Device > Details, you can select the new profile.

Screenshot 2024-07-09 at 11.46.06.png

8. Save the user.

Your user will now start using your new profile.

Additional notes

The General Android tracker profile is optimized for the device battery consumption and data plan usage. If you change the default values, it will have a higher impact in both of them.
