Connect nRoute to GpsGate

This article is about how to connect nRoute to GpsGate Splitter.

Read GpsGate splitter installation

Read GpsGate splitter configuration

Create virtual ports using the Wizard

The easiest way to create some virtual ports is by using the Setup Wizard. If you have already run the Wizard you can do it again by opening the Settings dialog and click Setup Wizard

Manually creating virtual ports

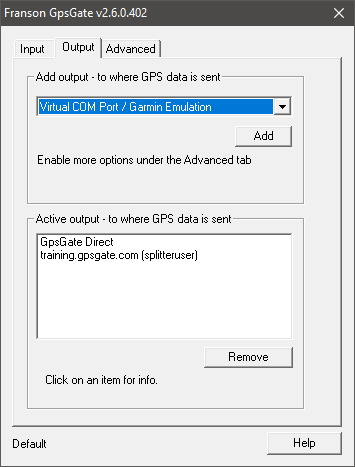

Open the Settings dialog from the tray menu. Select the Output tab. Select Virtual Port > NMEA to Garmin from the drop-down. Click Add.


A dialog now opens where you can select a virtual port to create. This is the port you should connect your nRoute or any other Garmin software to. Note that GpsGate does not support up and downloading of waypoints, routes, and tracks.
