Camera plugin
With the camera plugin, you can take pictures using a camera attached to a tracker. This adds an extra layer of security to your fleet. For example, you can take pictures after certain events in an automated way using Event Rules.
Currently supported trackers
- Teltonika DualCam
- Teltonika FMB630/FM6320/FMC650
- Queclink GV300/W
- ATrack AK1, AK7, AT1Pro, AT5, AU5, AU7, AY5.
- Meitrack MVT600, T1, T333
- TZone AVL09
Installation
1. Login to Site Admin (Legacy) > Plugins > Get More Plugins.
2. Download and install the Camera plugin.

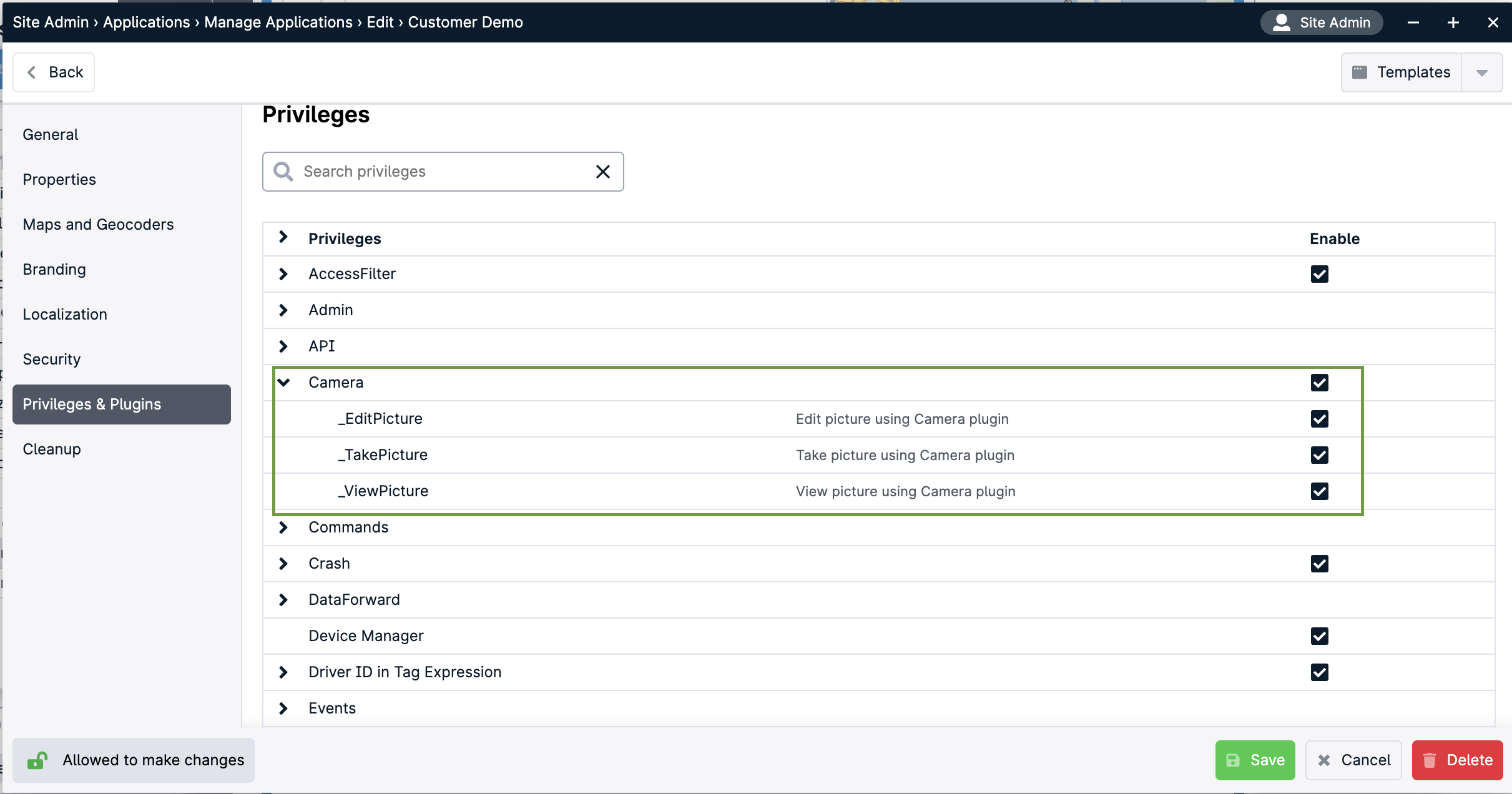

3. Enable the plugin by accessing your application privileges and plugins > Camera.
How to use
The Camera column is now available in the asset list indicating the status of pictures for assets:
- Green icon: new picture available.
- Gray icon: picture available
- Faded icon: no picture available
You can access the overview of pictures for a selected asset by clicking on the status icon in the Camera column, or clicking “Show pictures” in the context menu.

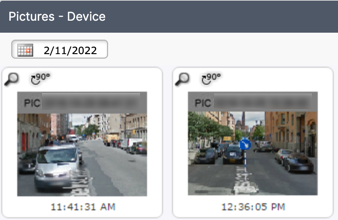

In the overview window, you can filter the pictures by date using the calendar control in the left upper corner, as shown below:
- All dates that have pictures are highlighted with a green background inside the calendar. After selecting a date, you can see the thumbnail(s) of any pictures taken on the specified date.
- Images are saved using UTC time.
- You can also see camera markers on the map for thumbnails that have a position available.
- You can open a high-resolution version of the picture by clicking the magnifier icon of the thumbnail picture:
Taking a picture

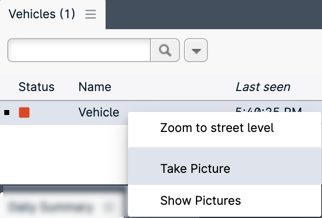

You can use the Take Picture command in the context menu of the asset list.
After taking the picture, you will see this confirmation message:
Additional info

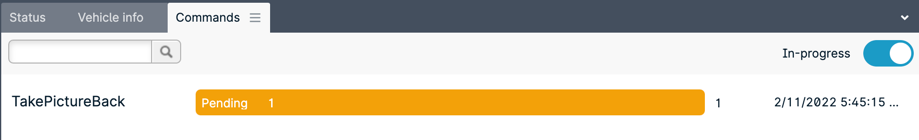

- You can use the Command Panel to see pending/executed commands.
- You can set up rules that trigger the Take Picture commands:
- Use the Cleanup plugin to delete unnecessary pictures.
