Position marker type: Status

The "Position marker: Status" option allows you to select a different icon to represent the current state of the asset.

Enabling the status option for position marker type:

1. In Site Admin, access the application properties.

2. Select the Properties > Position marker type > enable Status

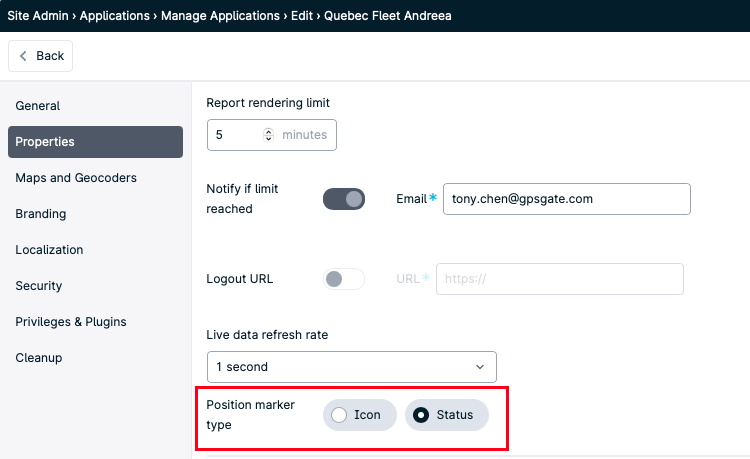

Settings page with position marker options.

2. Save the application.

Setup the asset:

Position marker: Motion (default icons)

Based on the asset's current inputs for ignition and speed, it can display various statuses, such as:

Vehicle status icons and descriptions

Position marker: Icon Sets(Customize)

Setting up Icon Sets

1. Log in to your application. Then select Icon Sets from the Main Menu > Admin.

2. To create a new icon set, click on the + Icon set.

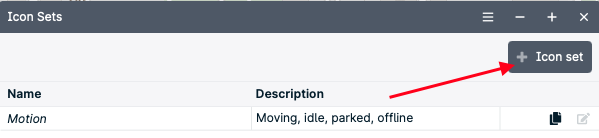

Icon Sets interface with add button

3. Set a Name and an optional description for your new icon set.

4. An icon set can serve purposes as both a position marker and/or a status indicator.

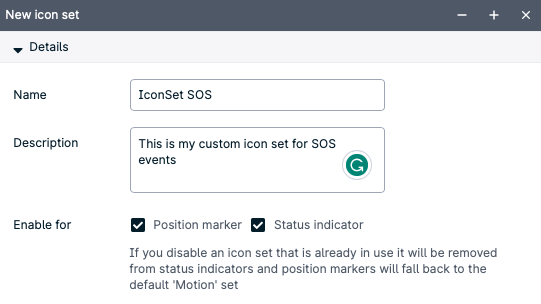

New icon set creation interface

5. Configure the condition(s) that will set the IconSet. In our example, we use the SOS signal. When SOS is true, the icon will become red on the asset marker.

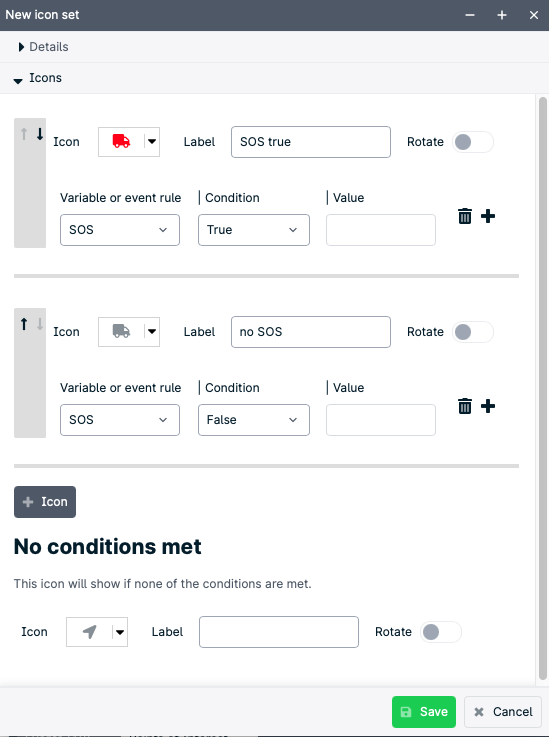

Icon set configuration screen

6. Edit the asset properties, by clicking right on the asset in the Assets panel.

7. Navigate to Marker and set the new Status indicator as the new IconSet created in the previous step.

Note from the following image, that the Position Marker of the asset is set to Motion where only the Status Indicator is set to the new IconSet.

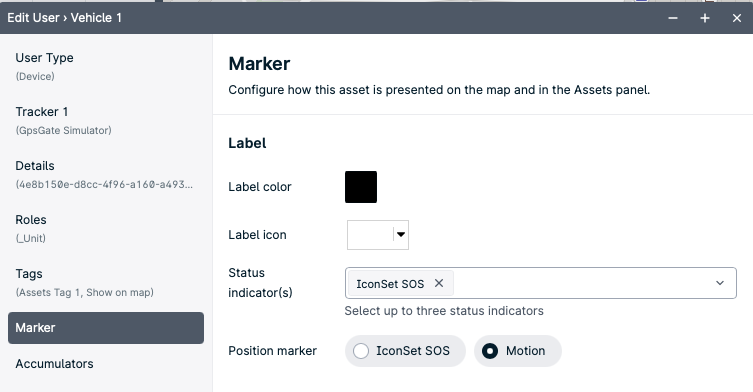

Marker configuration settings panel

As a result and according to our example setup, when SOS is true, we will see:

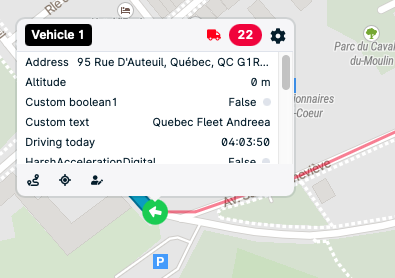

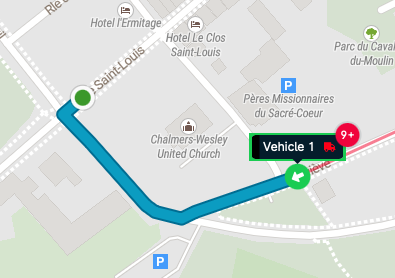

Vehicle location and details on map Map with vehicle route and location

Note: you can also apply this property to multiple applications using the batch edit feature.
