Area Search

The Area Search feature offers you the ability to pinpoint and explore a particular section of the map in order to delve into the history of your vehicle's movements and activities within that defined area.


With Area Search, you can instantly answer questions like:

  • Who was here last Friday?
  • How many times have we been here this week?
  • When was the last time we were here?
  • Who was speeding here?

Install Area Search

  1. Connected as Site Admin press on the Store icon Screenshot 2024-03-20 at 10.48.05.png

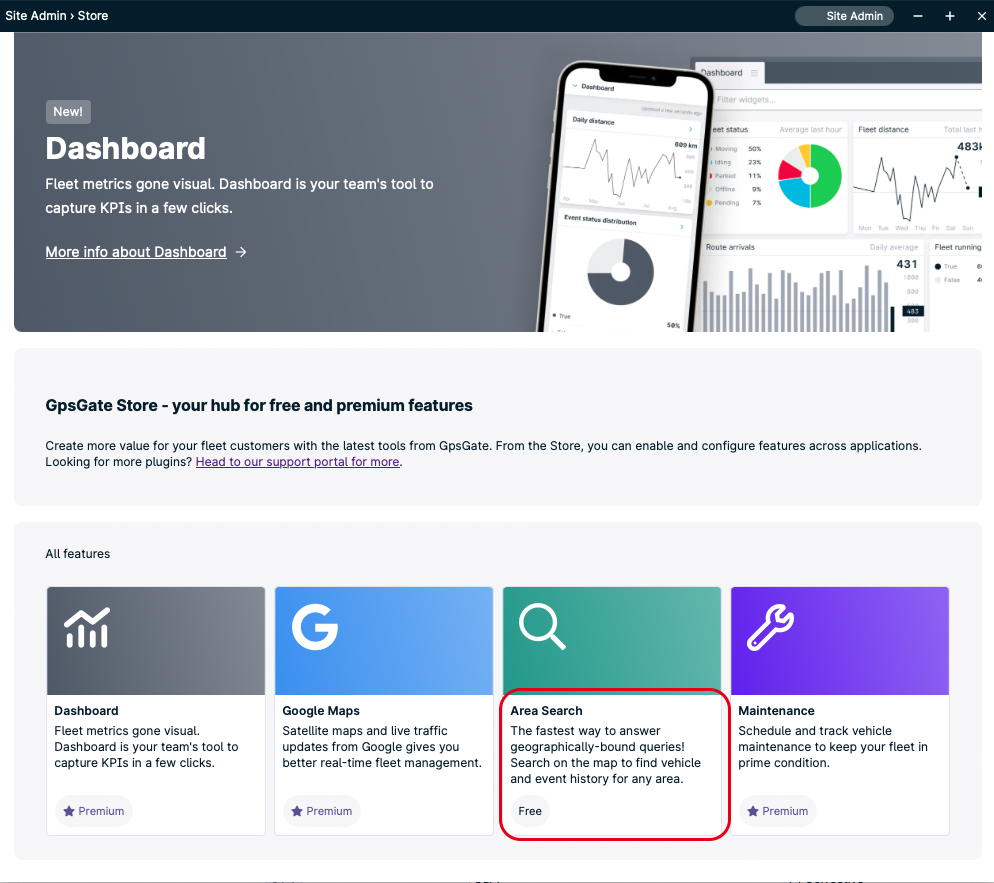

  2. In the Store, please select the Area Search Screenshot 2024-03-20 at 10.49.46.png

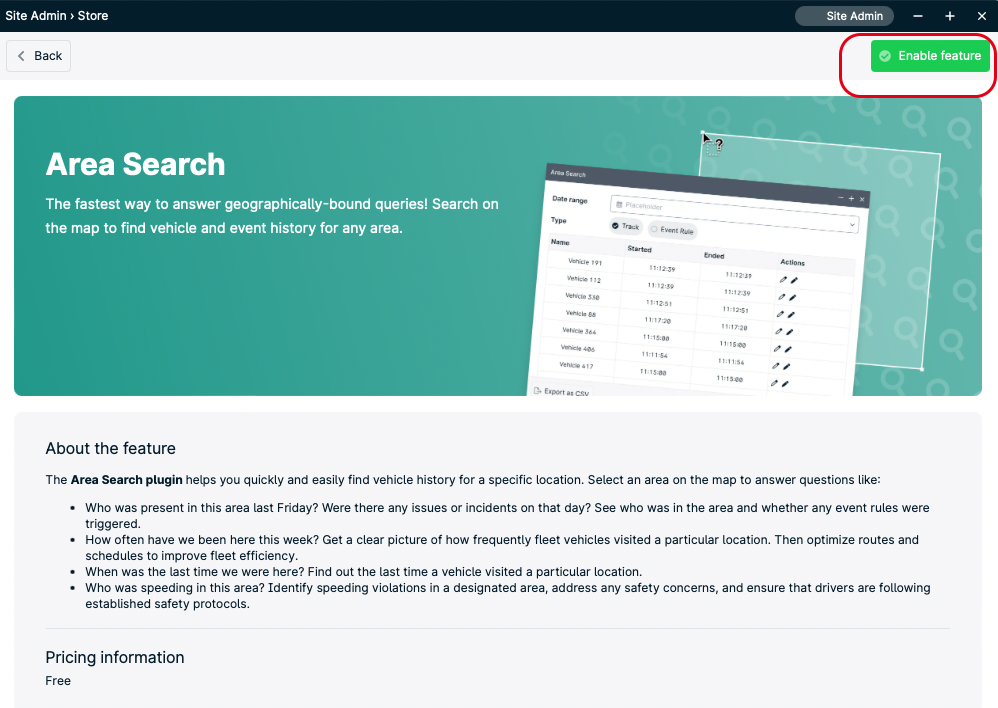

  3. Press on the Enable feature button or Configure button for a different application .Screenshot 2024-03-20 at 10.51.36.png
  4. Select the application/s

Screenshot 2024-03-20 at 10.52.08.png

5.     Save your application

How to use it

Track search

Log in to your application. The Area Search icon is in the toolbar on the map:

  1. Click on the Area Search icon and draw a rectangle to select the area you want to search

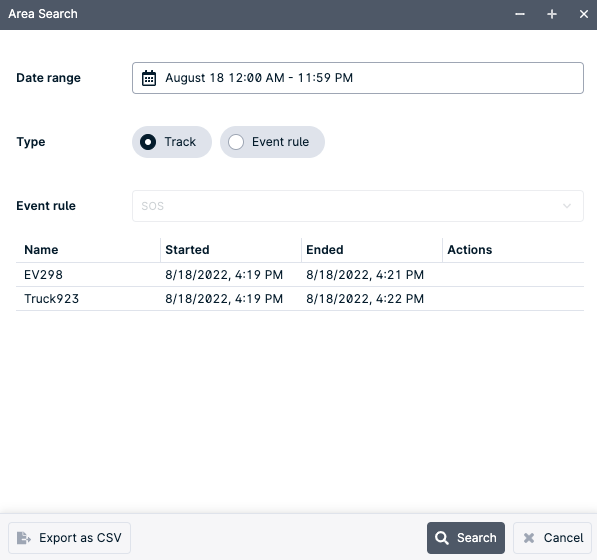

  2. Select a date range and Track as the Type, and click Search


The Area Search window lists the tracks that match your search criteria. You can click on any result to draw it on the map.

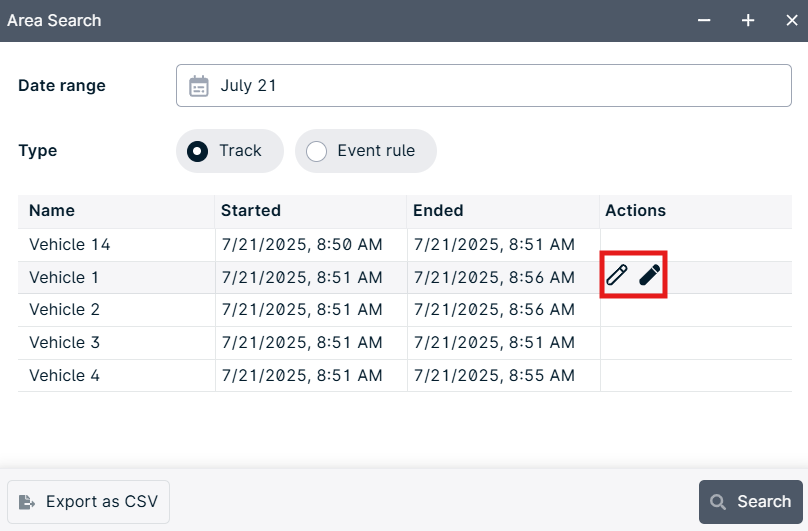

Actions: There are two possible actions when you get the search results.


  • Draw: the system will draw the found track on the map.
  • Show Track: the system will filter out the track points inside the search area and draw them on the map.

TIP: If you would like to draw the full track of the day for the vehicle, please use the Tracks Panel

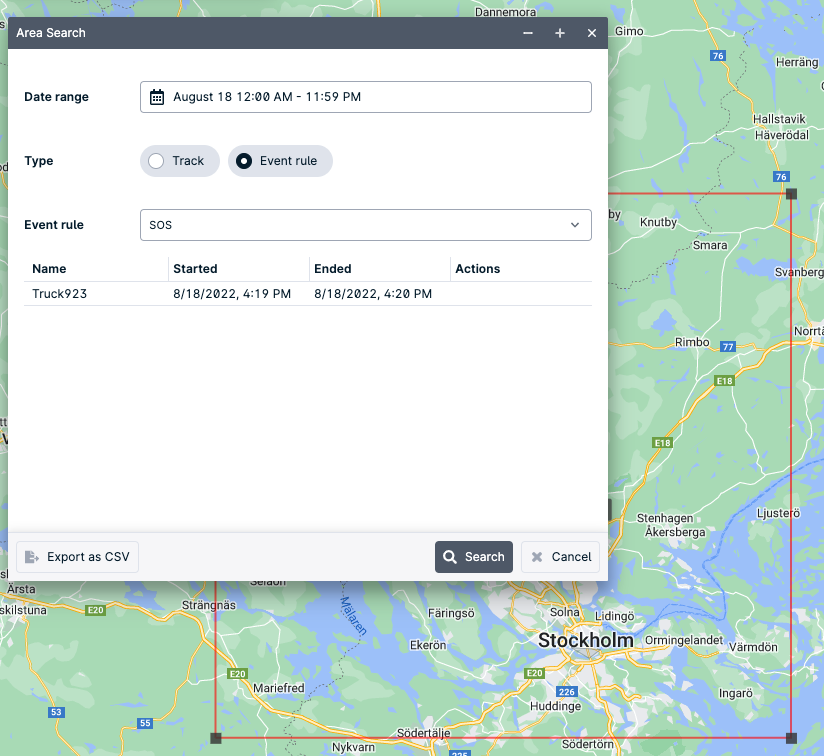

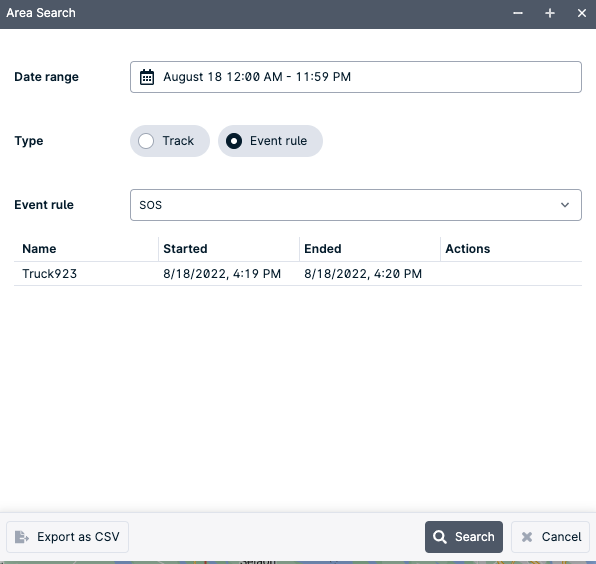

Event Search

If you want to search for specific events to know where and when these happened, you can do that by selecting the event rule of your choice.
