FU1005 Fuel Refill Report (detailed)
This report shows the fuel refills for the vehicles in the selected time period. A fuel refill is detected when the difference between a recent fuel level and the current one is considerably big.
In-report information
- Date: date of the fuel consumption event
- Start Time: the time when the refill took place
- Duration: time the vehicle spent refilling
- Address: location where the refill took place
- Fuel Before: number of liters/gallons before the refill
- Fuel After: number of liters/gallons after the refill
- Refill Volume: number of liters/gallons filled
- Total Refills: total number of refills performed to the vehicle/s
- Duration Refill: the total amount of time of the refills
- Sum Refill Volume: total amount of liters/gallons of fuel filled to the vehicle/s
Requirements
This report works with devices with CAN bus fuel-reading capabilities.
Setup
1. Go to Site Admin (Legacy) > Plugins > Get More Plugins
2. Install the Fuel Report plugin.
3. Activate the report into the application.

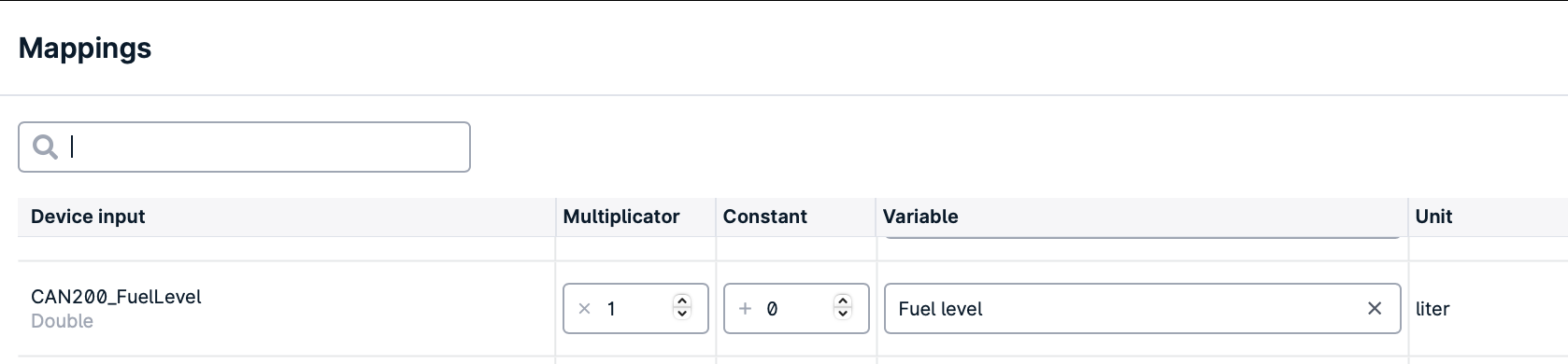

4. Choose CAN fuel data input from the device mapper, and select the Fuel level variable.
Example
Read more about the device mapper here.
Advanced
- If the Fuel Level input is not in liters, you can convert to different units using device mapper scripting.
- If you have non-linear input data from your device you can convert non-linear data into liters using scripting.
